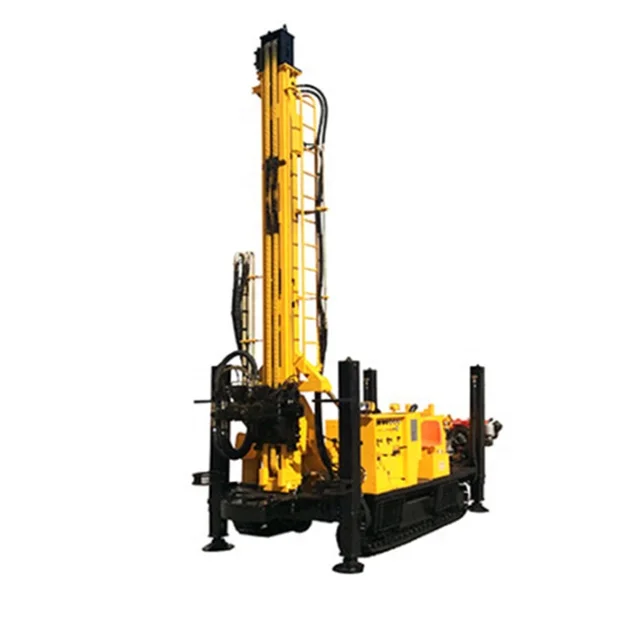

500m water well drilling rig with air compressor supply by fullwon

FOB Reference Price:Get Latest Price
$50,000.00 - $100,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
SWS500C
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works , Energy & Mining
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
China
Brand Name:
Seenwon
Usage:
Water Well
Dimension(L*W*H):
6800mm x 2250mm x2650mm
Weight:
13000kg, 13000kg
Certification:
ISO
Warranty:
1 year
After-sales Service Provided:
Video technical support, Online support
Product name:
400m water well drilling rig with 92 kw engine power in low price for
Model:
SWS500C
Borehole Diameter:
105-350mm
Air Consumption:
16-60m3/min
Max. Lifting Force:
25 ton
Rotation Torque:
9500N.m
Feeding Stroke:
3800mm
Grade Ability:
15
Supply Ability
Supply Ability:
30 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard package
Port
Shanghai or any other port in China
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 To be negotiated


500m water well drilling rig with air compressor supply by fullwon



ModelSWS500C
Rated Drilling Depth500m
Drilling Diameter105-350mm
Working Air Pressure1.05-4.5MPa
Air Consumption16-60m³/min
Drill Pipe Diameterφ89mm, φ102mm, φ114mm
Max. Lifting Force25t
Axial Pressure±10t
Lifting Force of Small Winch1.5t
Lifting Force of Main Winch4t (optional)
Rotation Torque9500N.m
Rotation Rate0-40/80rpm
Feeding Force3800mm
Lifting Rate0-18m/min
Grade Ability15°
Hydraulic Generator24kW/380V (optional)
Foam Pump20L/min (optional)
Transport Dimension (L x W x H)6800mm x 2250mm x 2650mm
Working Dimension (L x W x H)6800mm x 3250mm x 7500mm
Weight13t
