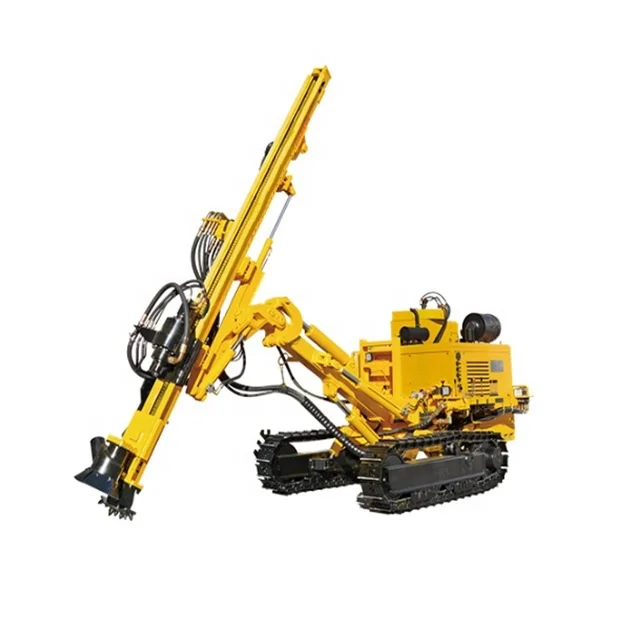

90-165mm Crawler Mounted Hydraulic DTH Drilling Rig supply by fullwon

FOB Reference Price:Get Latest Price
$30,000.00 - $50,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
SW590
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Online support
Place of Origin:
China
Brand Name:
Seenwon
Usage:
Ore
Weight:
6500kg, 6500kg
Certification:
ISO
Type:
Core Drilling Rig
Power Type:
Diesel
Dimension(L*W*H):
7000mm x 2200mm x 2100mm
Model:
SW590
Working Air Pressure:
1.2-2.4MPa
Borehole Diameter:
90-165mm
Borehole depth:
50m
Air Consumption:
11-21m3/min
Product name:
90-165mm Crawler Mounted Hydraulic DTH Drilling Rig supply by fullwon
Travle speed:
2Km/h, 3Km/h
Supply Ability
Supply Ability:
30 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard package
Port
Shanghai or any other port in China
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 To be negotiated


90-165mm Crawler Mounted Hydraulic DTH Drilling Rig supply by fullwon

ModelSW590
Borehole diameter90-165mm
Borehole depth50m
Applicable rock hardnessf=6-20
Working air pressure1.2-2.4MPa
Air consumption11-21m³/min
Feeding stroke4138mm
Rod-changing length3m
Max. horizontal drilling height3370
Rotation rate0-80rpm
Rotation torque3000Nm
Travle speed2Km/h, 3Km/h
Grade ability24°
PowerYuchai 70KW/Cummins 74KW (optional)
Electric motor 45KW
Dust collector (optional)Hydraulic dry dust collector
Wet dust collector
Dimension (LxWxH)7000mm x 2200mm x 2100mm
Weight6500kg

--1_07



--1_09(1)

--1_11



TRUCK

The company was founded in 1999. Leading truck dealer and exporter in Shanghai. Cooperates with leading truck manufactures and supply all kinds of heavy duty trucks, 3 wheels truck and semi-trailers.



CONSTRUCTION EQUIPMENT

Full Luck Enterprises Limited is reliable China's proceurement center of trucks, construction equipment and spare parts in Asia, cooperates with world leading construction equipment manufactures to supply all kinds of equipments to our customers around the world.



SPARE PARTS

Supply full ranges of spare parts for trucks and construction equipment. Professional and High effiency after market spare parts supply chain mangement for overseas customers.

* Heavy Duty truck* Wheel loader* Truck parts
* Light cargo truck* Excavator* Construction machinery parts
* Truck mounted crane* Road roller* Best value parts
* Customized truck* Bulldozer* Truckparts.com.ph
* 3 wheels truck* Motor grader* Fiamm horn
* Tank truck* Mobile crane* Workshop tools
* Semi-trailer* Forklift truck





Q: How can we trust your company?

A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and

VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.

Certificates including ISO9001 can also be provided.





Q: How about your warranty item?

A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our

experienced engineer can go abroad to your place for technical support.





Q: How about your product quality?

A: All our products are from the original manufacturers and the quality is 100% guaranteed.

Q:Can I be your agent in my country ?





Q:Can I be your agent in my country ?

A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
