China 18 ton Empty Container Handler Price for Sale

FOB Reference Price:Get Latest Price
$120,000.00 - $170,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
CPCD180
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
HELI
Certification:
ISO SGS GS
Warranty:
1 year
Dimension(L*W*H):
6000x6065x4400mm
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Applicable Industries:
Construction works , Energy & Mining
After Warranty Service:
Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Lifting Speed:
420mm
Max. Travel Speed (with Load):
28Km/h
Spreader sideshift:
300mm
Min Lifting Height:
2255mm
Max. Lifting Height:
16300mm
Max.Traction Force:
128KN
Lifting capacity:
8000Kg
Loader center:
1220mm
Transmission:
6 gears
Supply Ability
Supply Ability:
100000 Unit/Units per Year
Packaging & Delivery
Packaging Details
nude package for Popular China 18ton Empty Container Stacker/Container Handler for sale
Port
shanghai
Product Overviews

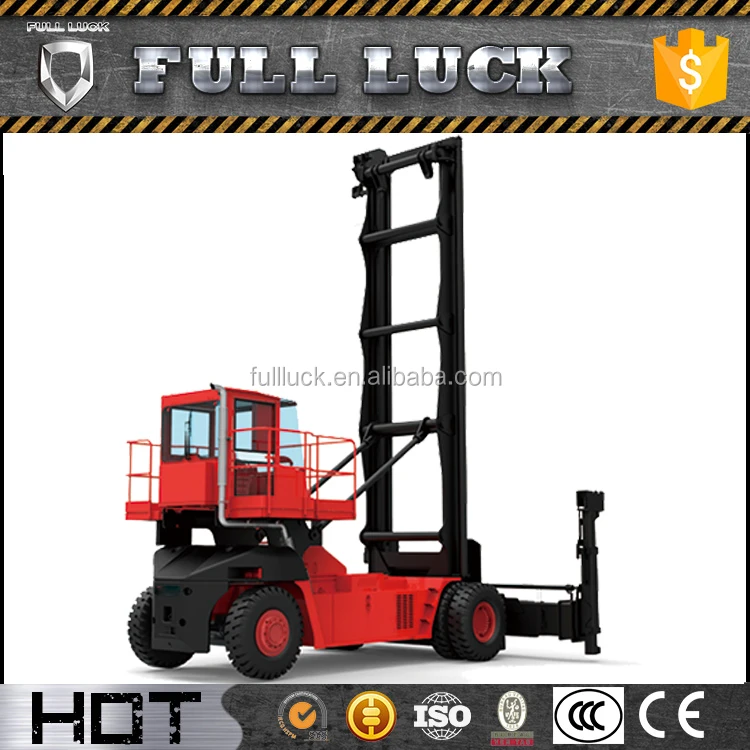

HELI EStacker g 18t.jpg

 Popular China 18ton Empty Container Stacker/Container Handler for sale



Dimensions and performanceModelUnitsCPCD180EC5-CZCPCD180EC6-CZ
Lifting capacitykg8000
Stacking height 5x9’6”/ 5x8’6”6x8’6”
Load centermm1220
Mast tilt (backward/forward)deg3/3
Spreader sideshiftmm±300
Max lifting height in twistlocksmm13700/1522016300
Min lifting height in twistlocksmm2255
Width (spreader/tire)mm6065/3500
Overall lengthmm6000
Lifting speed(at rated load)mm420



Product Features

(1) Design Standards: Designed by well-known European port machiner company(harbor machinery company), the truck is synchronized with the technical level of same period European product. The truck with higher security not only meets national standards but also EU standards (EN1459;ISO15018).

(2) Driveline: Cummins power meeting national emission standard level 3 (EU3) is assembled on the truck. This model possesses strong drive power and good weather-resistance.

(3) Transmission: The model is assembled with originally imported  transmission with smooth and high efficient gear shifting.

(4) Drive axle: The truck is assembled with originally imported Kessler axle with wet disc brakes specially designed for heavy trucks, meeting continuous operation in poor working conditions and maintenance-free requirements.

(5) Hydraulic system: American Parker’s integrated hydraulic system with high efficiency and fuel economy is assembled on the truck. The innovative design of self-cleaning hydraulic cooling system extends the interval between oil changes and reduces the total cost of the machine ownership. Advanced techniques such as load sensing, dual pump converging, and small flow under high pressure are applied to save energy and reduce the cost.

(6) Electronic controlling system: CanBus technology increases engine and transmission reliability.

(7) High strength structure components:  Heavy-duty box-type chassis makes the foundation of long-lasting high performance.
