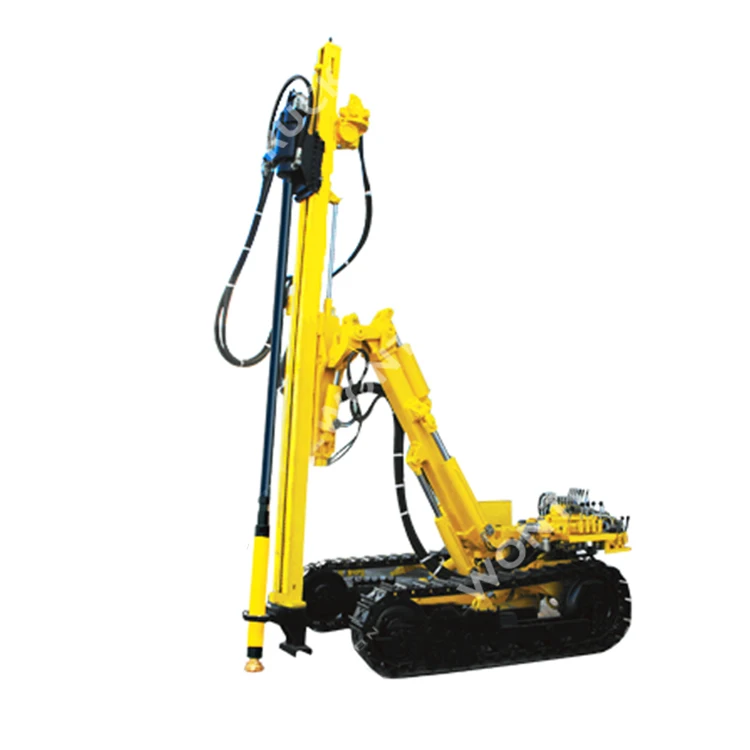

SW-PCR200 Pneumatic Crawler Rock Drill

FOB Reference Price:Get Latest Price
$30,000.00 - $50,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
SW-PCR200
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service
Place of Origin:
Shanghai, China
Brand Name:
SEENWON
Usage:
Ore
Weight:
5400
Type:
Rotary Drilling Rig
Bore Hole Diameter:
89-140 mm / 3.5-5.5 inch
Total length (mm):
6,100
Total width (incl.operator pedal) (mm):
2,360
Total width (excl.operator pedal) (mm):
2,200
Total height (main boom down) (mm):
2,105

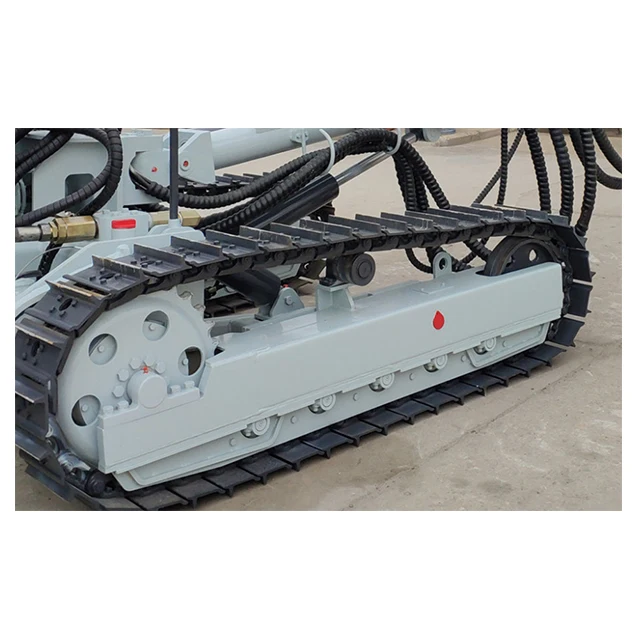

Total track length (mm):
2,580
Total track length on ground (mm):
1,885
Track width (mm):
310
Weight (kg):
5400
Minimum ground clearance (mm):
250
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude package for SW-PCR200 Pneumatic Crawler Rock Drill
Port
Shanghai



-1



rock drill

rock drill 02



KEYSW-PCR200  Pneumatic Crawler Rock Drill
Bore Hole Diameter 89-140 mm  / 3.5-5.5 inch
Total length (mm)6,100
Total width (incl.operator pedal) (mm)2,360
Total width (excl.operator pedal) (mm)2,200
Total height (main boom down) (mm)2,105
Total track length (mm)2,580
Total track length on ground (mm)1,885
Track width (mm)310
Weight (kg)5400
Minimum  ground clearance (mm)250
Travel speed (km/h)0 ~ 3.5
Power of travel motor (KW)8.8 * 2
Grade-ability (°)35
Swing angle (°)13
Rotary headReducer pneumatic motor
Slewing weight (KG)219
Max. rotary torque (KN-m)2
Pneumatic motor power(kW)3.7
Water consumption (L/min)    46
Hydraulic pump pressure (Mpa)    14.7
Hydraulic oil tank (L)    53
Rod diameter×length (mm)Ø76, Ø89 ×3,000
Maximum wind pressure (Mpa)    2.5
Suggested air amount (m³/min)    25
Hose connectorRc 2 in.
Internal lubricating oil (L)    Gear oil, approximately 8
Total length of slide frame (mm)5,420
Length of drill boom (mm)    1,912
Propulsion length (mm)    3,980
Max. propulsion force (kN)    11
Swing angle of sliding frame (°)    Left 4 / Right 54
Power of propulsion motor (kW)    3.8
Drill boom pitching (°)    Up 46 / Down 23
Drill boom swing (°)    Left 40 / Right 40

--1_07



--1_09(1)

--1_11







Q: How can we trust your company?

A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and

VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.

Certificates including ISO9001 can also be provided.





Q: How about your warranty item?

A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our

experienced engineer can go abroad to your place for technical support.





Q: How about your product quality?

A: All our products are from the original manufacturers and the quality is 100% guaranteed.

Q:Can I be your agent in my country ?





Q:Can I be your agent in my country ?

A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
