cheap mini excavator hot selling for sale

FOB Reference Price:Get Latest Price
$35,000.00 - $48,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
CDM6085
Machine Weight:
5150kg
Report Suspicious Activity
Overview
Quick Details
Bucket capacity:
0.36m3
Operating Weight:
8600kg
Rated Speed:
2.8 -4.5 km/h
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Overseas service center available
Place of Origin:
Shanghai, China
Brand Name:
Lonking
Condition:
New
Moving Type:
Crawler Excavator
Maximum Digging Height:
3150mm
Maximum Digging Depth:
3820mm
Max Digging Radius:
3915mm
Certification:
ISO
Color:
Yellow
Type:
Standard
Engine:
Yanmar 4TNV98T
Bore*Stroke:
98mm*110mm
Displacement:
3.319 L
Min. Fuel Consumption:
244 g/kw.h
Ground pressure:
37kPa
Fuel tank:
146 L
Cooling system:
19L
Supply Ability
Supply Ability:
500 Piece/Pieces per Month Also supply on the vacation
Packaging & Delivery
Packaging Details
8.5T Lonking cheap excavator hot selling for sale CDM6085, nude package
Port
Shanghai
Product Description
 Lonking cheap mini excavator hot selling for sale CDM6085
Specifications
CDM6085
Model
Yanmar 4TNV98T (Stage Ⅱ)
Rated power
57.7 kW (78.5 hp) /2200 rpm
Bore × Stroke
98mm×110mm
Displacement
3.319 L
Min. Fuel Consumption
244 g/kw.h
Comment
Maintain the rated power at 2300m elevation.
Summary
Operating weight:8600 kg
The operating weight includes the weight of 3720 mm standard boom, 1665 mm standard arm, 0.36m3 standard bucket,
450 mm track shoes, lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units.
Ground pressure
37 kPa
Fuel tank
146 L
Hydraulic oil tank
120 L
Cooling system
19 L
Engine oil
12 L
Swing drive unit
2 L
Traveling gear
2×1.4 L
Summary
Plunger Type (with safety  valve and closed type brake)
Swing speed
11.69 rpm
Summary
Plunger Type (with safety  valve and closed type brake)
Taveling speed
2.8 -4.5 km/h
Gradeability
35°(70%)
Maximum Traction
75.2 kN
Standard track shoe width
450 mm
No. of track shoe
38 (each side)
No. of carrier rollers
1 (each side)
No. of track rollers
5 (each side)
Main pump
Axial variable plunger pump
Max. flow of system
74.8×2 L/min
Max.pressure
28.5 MPa
Max. pilot pressure
3.7 MPa
Operating equipment
Each machine action is under the pilot control. The right lever controls the motion of boom and bucket
while the left lever controls the arm motion and upper structure swing. The foot pilot valve is provided
with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control.
Electrical system
System voltage: 24 V
Battery:12 V, 100 A
Products Show

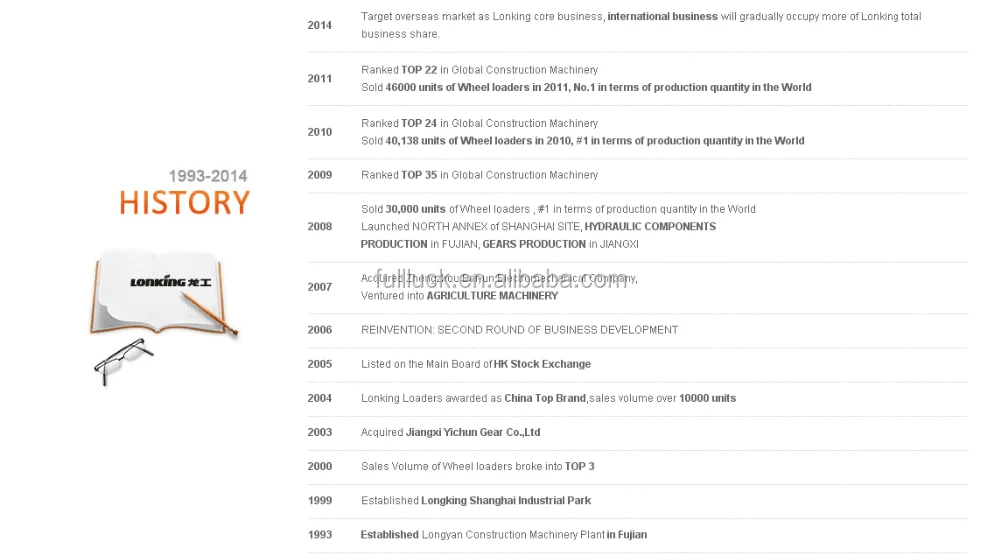

About Lonking
After sales service

Professional after-sales service


 *We can provide technical support overseas



Experienced engineers


* Senior Engineers with over 20 Years' Working Experience

Satisified clients


* Offer Operation and Maintenance Training

Delivery and package
Our Company

Factory

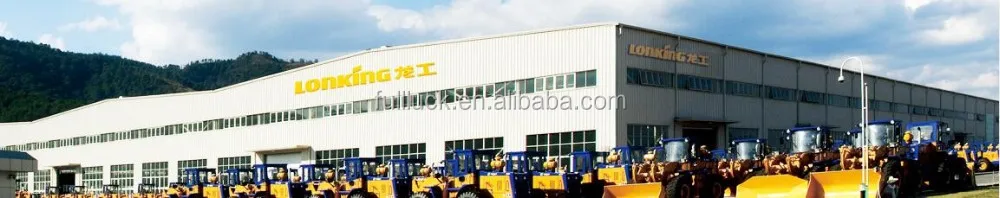

Our Factory

Workshop

Our Workshop

FAQ

Q: How can we trust your company?

A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting. Certificates including ISO9001 can also be provided.

Q: How about your warranty item?

A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.

Q: How about your product quality?

A: All our products are from the original manufacturers and the quality is 100% guaranteed.

Q:Can I be your agent in my country ?

A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
