Professional Factory Made rotary small rock drilling rig with spare parts

FOB Reference Price:Get Latest Price
$5,000.00 - $10,000.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
SEENWON
Model Number:
XR120D
Usage:
Coal
Voltage:
220V/380V
Weight:
40Ton
Certification:
ISO9001
Type:
Core Drilling Rig
Power Type:
Diesel
Dimension(L*W*H):
12580*3400*3360mm
Power(W):
112/1950
Max.Drilling Diameter Uncased:
1300mm
Max.Drilling Diameter Max.Drilling Depth:
44mm
Working condition L* W * H:
7175*3400*16800mm
Transportation condition L * W *H:
12580*3400*3360mm
Overall Drilling Weight:
40t
Engine Model:
CUMMINS B5.9-C
Engine Rated Power:
120(kN.m)
Rotary speed:
6~28(r/min)
Max.pull-down piston push:
120(kN)
Product name:
Good quality rotary small rock drilling rig with spare parts
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard package for Good quality rotary small rock drilling rig with spare parts
Port
Shanghai port or any other port in China
Lead Time :
45 days after deposit
ABOUT US

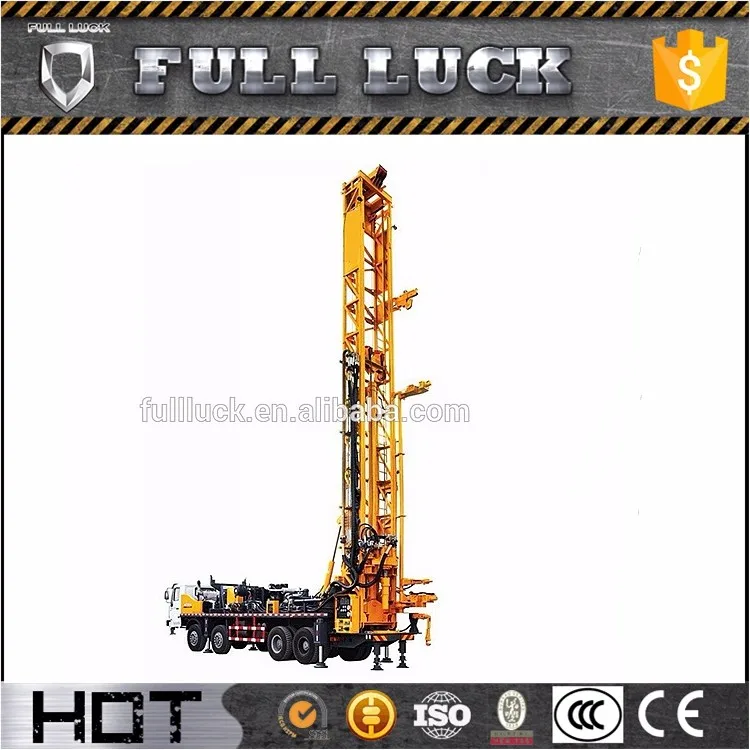

water well drilling rig FL.jpg



Good quality rotary small rock drilling rig with spare parts
Max.Drilling Diameter
Uncased(mm)φ1300
Cased(mm)-
Max.Drilling Depth(m)44
Dimension
Working condition L × W × H(mm)7175×3400×16800
Transportation condition L × W × H(mm)12580×3400×3360
Overall Drilling Weight(t)40
Engine
Model-CUMMINS B5.9-C
Rated Power(kW)112/1950
Hydraulic System
Working pressure(MPa) 32
Rotary Drive
Max. output torque(kN.m)120
Rotary speed(r/min)6~28
Spin off speed(r/min)-
Pull-Down Cylinder
Max.pull-down piston push(kN)120
Max.pull-down piston pull(kN)120
Max.pull-down piston stroke(mm)3500
Crowd Winch
Max.pull-down piston push(kN)-
Max.pull-down piston pull(kN)-
Max. pull-down piston stroke(mm)-
Main Winch
Max.pulling force(kN)100
Max. single-rope speed(m/min)70
Diameter of the steel wire rope(mm)24
Auxiliary Winch
Max. Pulling force(kN)45
Max. single-rope speed(m/min)70
Diameter of the steel wire rope(mm)16
Drilling mast
Left/right inclination of mast(°)42432
Front inclination of mast(°)5
Rotary table slewing angle(°)360
Traveling
Max. traveling speed(km/h)3.2
Max.grade ability(%)40
Crawler
Track shoe width(mm)700
Distance between tracks(mm)3400
The length of crawler(mm)3650
Average ground pressure(kPa)73.6

--1_07



--1_09(1)

--1_11

--1_12





Q: How can we trust your company?

A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and

VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.

Certificates including ISO9001 can also be provided.





Q: How about your warranty item?

A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our

experienced engineer can go abroad to your place for technical support.





Q: How about your product quality?

A: All our products are from the original manufacturers and the quality is 100% guaranteed.

Q:Can I be your agent in my country ?





Q:Can I be your agent in my country ?

A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
