New LION KING 22 Ton Electric Excavator With Best Breaker CDM6235E

FOB Reference Price:Get Latest Price
$1,000.00 - $60,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
CDM6235E
Machine Weight:
14000kg
Report Suspicious Activity
Overview
Quick Details
Bucket capacity:
1.16m3
Operating Weight:
22000kg
Rated Speed:
3.0 - 5.1 km/h
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Field maintenance and repair service, Overseas service center available
Place of Origin:
Shanghai, China
Brand Name:
Lonking
Certification:
CE ISO
Moving Type:
Crawler Excavator
Maximum Digging Height:
13366mm
Maximum Digging Depth:
12004mm
Max Digging Radius:
15746mm
Applicable Industries:
Construction works , Energy & Mining
Engine Brand:
other
Hydraulic Pump Brand:
other
Hydraulic Cylinder Brand:
other
Hydraulic Valve Brand:
other
UNIQUE SELLING POINT:
other
Engine:
Cummins QSB6.7 (Stage III A)
Color:
yellow
Rated power:
145KW/2000rpm
Max. torque:
929N../1500rpm
BorexStroke:
107mmx124mm
Gradeability:
35°(70%)
Maximum Traction:
222 kN
Hydraulic tank:
350L
Swing speed:
12.1rpm
Supply Ability
Supply Ability:
100000 Unit/Units per Year lead time is guaranteed by trade assurance
Packaging & Delivery
Packaging Details
Standard packing for New Lonking 22ton electric excavator with best breaker CDM6235E
Port
shanghai
Product Description

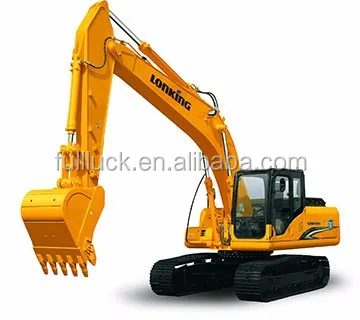

                    New Lonking 22ton electric excavator with best breaker CDM6235E
Specifications
CDM6235E
Engine
Model
Cummins QSB6.7 (Stage ⅢA)
Rated power
145kW/2000rpm
Max. torque
929N../1500rpm
Bore × Stroke
107mm×124mm
Displacement
6.7 L
Comment
Maintain the rated power at 2300m elevation.
Operating weight
Summary
Operating weight:22000kg
The operating weight includes the weight of 5700 mm standard boom,2900 mm standard arm,1.16m3 standard bucket,
600 mm track shoes, lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units.
Ground pressure
45 kPa (Lengthened type:50 kPa)
Fluid capacity
Fuel tank
350 L
Cooling system
23 L
Engine oil
18 L
Swing drive unit
3.8 L
Traveling gear
2×3.3 L
Hydraulic oil tank
220 L
Swing mechanism
High torque plunger motor and 2-stage planetary reducer drive. Brake inside loading motor is applied by spring and released by hydraulic unit. The automatic braking is available when the swing control lever is in neutral position.
Swing speed :12.1 rpm
 (Lengthened type:8 rpm)
Travel drive
Summary
The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged inside the track frame to prevent the damage caused by the rugged road surface; The motor inside is provided with the service brake and shock absorption valve to ensure the smooth running and stop and the reliable braking.
Taveling speed
3.0 - 5.1 km/h
Gradeability
35°(70%)
Maximum Traction
222 kN
Hydraulic system
Standard track shoe width
600 mm
No. of track shoe
49 (each side)
No. of carrier rollers
2 (each side)
No. of track rollers
9 (each side)
Operating equipment
Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while the left lever controls the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control.
Electrical system
System voltage:24 V
Battery:12 V,120 A×2
Benefits & Features

Construction Machinery CDM6235E features:

CDM6235E with strong, powerful and high quality engine and advanced negative flow control hydraulic system to achieve the best power matching and minimum cost and guarantee the optimum working efficiency.

CDM6235E is widely used for excavating, handling and finishing of earth or stones to meet the demand of construction sites, factory, municipal engineering and park objects. With the optional bucket, the material handling, surface finishing, ditch excavation and river course cleaning can be achieved, with the optional breaking hammer, the building demolition, road surface repair and rock breaking can be achieved. The structural members are subjected to the repeated analytical calculation to ensure the rigidity and strength which can cope with the rigorous working conditions.

Cummins 6BTAA5.9-C
Cummins high power, high torque and turbo-charging 6-cylinder direct injection engine guarantees the high reliability and durability. The charge air cooling system over the compressed air can enhance the oxygen content upon combustion markedly. The center fuel injection under high injection pressure allows the uniform atomizing of fuel, guarantees the normal combustion and reduces the exhaust gas emission.

Filtering System
The high efficiency dual element air filter ensures the quality of engine air intake. In addition, the air pre-filter can carry out the rough filtration over the air intake to enable the operation under the poor air quality working conditions and prolong the maintenance interval of the air filter. The oil-water separator and two-stage fuel filter will filtrate the fuel many times to ensure the quality of fuel fed to the engine.

Cooling System
The parallel radiator cooling makes cooling effect better and service easier.

Maintenance and Service
The easy maintenance of direct injection engine reduces the cost of maintenance. The global after service of engine enables the sharing of global resources. This will enhance the service efficiency, relieve the customers of worry about the service and ensure the attendance rate of excavator.

Specialist of Engine Management
The engine speed allows 10 adjustable gears through the throttle potentiometer and achieves the precise management over the engine speed through the control of engine throttle by the DC servo motor. The engine allows the auto idling/acceleration function to reduce the fuel consumption. It has a function of touch power enhancement, can handle the high resistance working condition with ease.

Control Mode
The dual pump two-circuit total power control system adopts the mature and reliable Europe and America technology to control the flow, the proportional solenoid valve regulates the two-stage pressure control of the main overflow valve.

Functions
This machine allows the functions of straight travel, boom/arm confluence, boom/arm holding, swing priority, swing anti-reversing and regeneration of arm cylinder. Each circuit without interference during composite action. Digging of arm and bucket as well as the lifting and swing of boom at the same time during operating, the operations of left and right motors are independent during traveling.

Auxiliary Hydraulic Valve
The main valve is provided with a set of standby valves to facilitate the installation of other accessories such as the breaking hammer.

Filtering System
The hydraulic circuit is equipped with the high quality hydraulic oil filter which can prolong the service life of the hydraulic elements.

Components Layout
The special design of hydraulic system and components location can enhance the system efficiency of the machine. The hydraulic oil tank, main pump and main valve are arranged closely to shorten the connecting lines and consequently reduce the line friction and pressure drop. The radiator is arranged at the right side behind the cab to effectively reduce the noise, hot air and exhaust gas received by the operator.

Pilot System
The pilot pump is independent of main pump and supply oil to the pilot system which guarantee the stable and independent pilot control and facilitate the maintenance.

Monitor
The multi-purpose true color monitor allows the real-time monitoring and display of machine state, engine speed, coolant temperature, oil pressure and fuel level etc.

Power Control Mode
3 power modes of heavy-duty power mode (H mode), saving power mode (S mode) and light-duty power mode (L mode) can switch at will to reduce the system power loss. The combination of 3 modes can reduce the fuel consumption and better meet the different working conditions.

Fault Auto Warning
It allows the fault self-diagnosis auto warning display and fault message save up to 99,000 pieces approximately to facilitate the fault call and inquiry during the maintenance of equipment. There are 3 levels of warning display according to the fault severity.

Engine Overheating Auto Protection
The overheating protection will be active if the coolant temperature exceeds 102℃. Then the engine will not stall while the system will reduce the engine speed. However, if the coolant temperature is too high, the operator should shut down the machine as required and find out the fault causes.

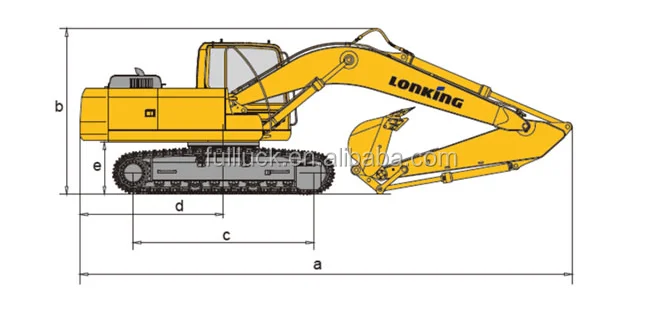

Transport Size

The following sizes approximate to that of the equipment of standard configuration.

Working Device type
Standard
Long Reach
Boom Length (mm)
5700
8500
Arm Length (mm)
2900
6500
a Transport length(mm)
9522
12290
b Total transport height(mm)
3032
3160
c Tumblers distance (mm)
3645
d Tail slewing radius(mm)
2830
e Counterweight ground clearance(mm)
1103
f Track gauge(mm)
2390
g Total transport width(mm)
2990
h Upper structure width(mm)
2730
i Standard track shoe width(mm)
600
J Min. ground clearance(mm)
480

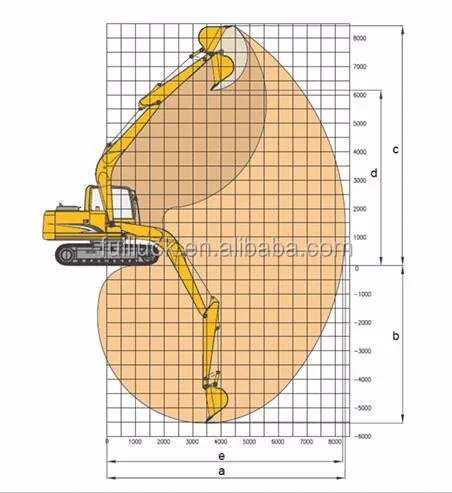

Operating Range

The following sizes approximate tothat of the equipment of standard configuration.

Working Device type
Standard
Long Reach
Boom Length (mm)
5700
8500
Arm Length (mm)
2900
6500
a Max. digging radius(mm):
9917
15746
b Max. digging depth(mm):
6566
12004
c Max. digging height(mm):
9715
13366
d Max. dumping height(mm):
6830
10994
e Max. digging radius on ground(mm):
9745
15639
Max. bucket breakout force-ISO(kN):
147
90.4
Max. arm breakout force-ISO(kN):
107
54.8
Our Company

Fulluck Group was founded in 1999. After 17-years of experience in the truck and construction equipment industry, Shanghai Fulluck industrial co.,ltd is Authorized dealers of Volvo truck and construction machinery, Renault truck, UD truck, Hino truck, Isuzu truck and Sinotruk. Famous local construction machines from manufacturers such as XGMA, Lonking are also our strategic partners. Fulluck also has our own manufacturing lines which enable us to provide customized trailers, containers and construction equipment according to end-user’s requirements.

certificate
Packing & Delivery

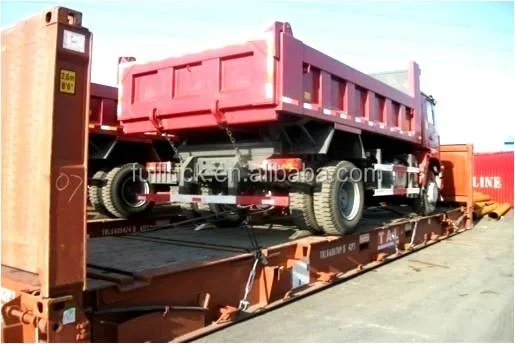

dump truck on flat rack container
