Hongyan Kingkan new design 8*4 Euro 3 dump truck

FOB Reference Price:Get Latest Price
$50,000.00 - $59,000.00 / Unit | 1 Unit/Units two or more with discount (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Chongqing, China
Brand Name:
Hongyan
Model Number:
New Kingkan
Transmission Type:
Manual
Capacity (Load):
11 - 20t
Horsepower:
251 - 350hp
Emission Standard:
Euro 3
Engine Capacity:
> 8L
Drive Wheel:
8x4
Fuel Type:
Diesel
Dimensions (L x W x H) (mm):
9845*2500*3510
Gross Vehicle Weight:
31000
Product name:
Hongyan Kingkan new design 8*4 Euro 3 dump truck
Brand:
Hongyan
Curb weight:
14930kg
Wheelbase:
1800+3300+1350
Cab:
Flat-roof, A/C with sleeper, manual tilt
Engine:
WP10.340E32
Tire:
12.00R20/315/80R22.5
Cargo body:
7000*2300*1500
Axles Loading:
Front 9T+9T, Rear 20T+20T
Fuel tank:
400L steel with lockable fuel cap
Supply Ability
Supply Ability:
1000 Unit/Units per Year also supply during holidays
Packaging & Delivery
Packaging Details
Nude package for Hongyan Kingkan new design 8*4 Euro 3 dump truck
Port
Shanghai
Lead Time :
within 1 month
Product Details

Characteristics of the Product

Prduct name:        Hongyan Kingkan new design 8*4  Euro 3 dump truck

Product Details







Model New Kingkan CQ3314HTG336
Driving type 8*4
Weight(kg) Gross vehicle weight31000
Curb weight14930
Payload at gross vehicle weight15940
Overload range of gross vehicle weight(road condition)<80000 on complex road
Overall demensions(mm)Wheelbase1800+3300+1350
Overall length9845
Cab width2500
Cab Height(unladen)3510
Front overhang1435
Rear overhang1910
Min. ground clearance280
CabTypeFlat-roof, A/C with sleeper, manual tilt
SuspensionMechanical suspension
Driver seatAdjustable seat
EngineModelWeichai power WP10.340E32
Cylinder( in line)6
Capacity9726ml
TurbochargerInter-cooling
Max. power (hp/kw)@rpm340hp/250kw@ 2200rpm
Max. torque(Nm)@rpm1350Nm@ 1200-1600rpm
Emission regulationEuro 3
Cooling fan2 shifts eletro-magnetic
Fuel systemBOSCH® unit pump injector
GearboxFAST® 12JSD180T 12 forward shifts and 2 reverse shifts with full synchronizers with Eaton Fulller technology
SuspensionsFront  Parabolic leaf
Shock absorbers2 on front
Rear  Semi-elliptic leaf
Steeringpower assisted
AxlesTypeHongyan exclusive high-performance twin-reduction casting steel axle
LoadingFront 9T+9T, Rear 20T+20T
Hub reductionAvailable
Differential lockCross and inter axle
Tire12.00R20/315/80R22.5
Fuel tank 400L steel with lockable fuel cap
Cargo body
Type Rectangle reinforced body (more optional body type available refer to using environment)
Length(mm)7000
Width(mm)2300
Height(mm)1500
Bottom thickness(mm)8
Side thickness(mm)8
Lifting system and typeHYVA®, front lifting
Optioal
EngineWP10.340E32, WP10.380E32 or Cursor Engine
Wheelbase(mm)1800+3000+1350,1800+3600+1350,1800+3900+1350,1800+4200+1350,1800+4600+1350
Cab1. High roof  2. Auto tilting  3. Automatic heating rearview mirror  4. Air-suspension  5. Pneumatic seat

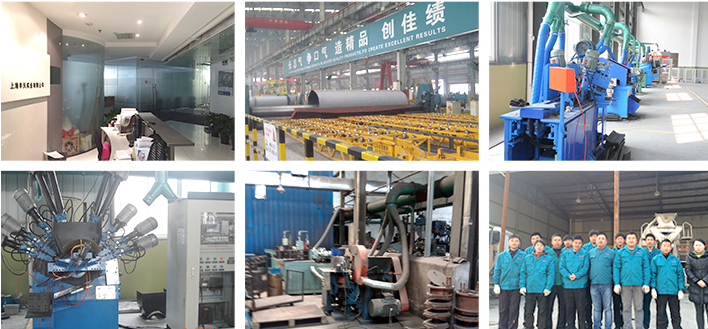

Factory Show

Factory Show

SINOTRUK produced China's first heavy-duty truck- Huanghe JN150 8t truck in 1960, and introduced a heavy-duty truck project from Steyr in 1983. After rapid development of many years, SINOTRUK has initially built an international platform through the red-chip listing in Hong Kong in 2007, forged a strategic partnership with MAN which holding a 25%+1 stake in SINOTRUK (Hong Kong) Limited in 2009, and introduced a series of technologies from the outside soon afterwards.

Nowadays, with overwhelming superiorities in technology and market, SINOTRUK has become China's largest heavy truck manufacturing base that has made a remarkable contribution to the development of China's heavy-duty truck industry and economic construction.


Why Choose Us

Why Choose Us

1. Why Choose Us?
We are officially authorized 4S dealer and exporter of SINOTRUK and offer brand new vehicles through regular channels.


2. Advantages:
a. Possess 13 Years' Industry Experience
b. Have Our Own Logistics Company
c. Have Senior Engineers with over 20 Years' Working Experience
d. Offer Operation and Maintenance Training
e. Have No Limit of Order Quantity

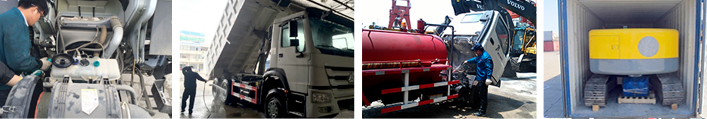

3.Value-added Services
a. Forty-five Predelivery Inspections
b. Export Brand New Vehicle with Clean Cab
c. Export Vehicle with Full Wax Protection
d. Reasonable Packing


Our Service

Our Service


Certifications

Certifications Display


Successful Case

Successful Case


Packaging & Shipping

Packaging & Shipping


FAQ

FAQ

Q:How can we trust your company?
A:We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting. Certificates including ISO9001 can also be provided.

Q:How about your warranty item?
A:We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.

Q:How about your product quality?
A:All our products are from the original manufacturers and the quality is 100% guaranteed.

Q:How do you transport the trucks?
A:There are optional transportation manners including RORO ship, bulk cargo ship, flat rack container, 20' container, 40' container, 40' HQ, 40' top open container, and LCL to meet your requirements.

Q:Can I be your agent in my country ?
A:It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
