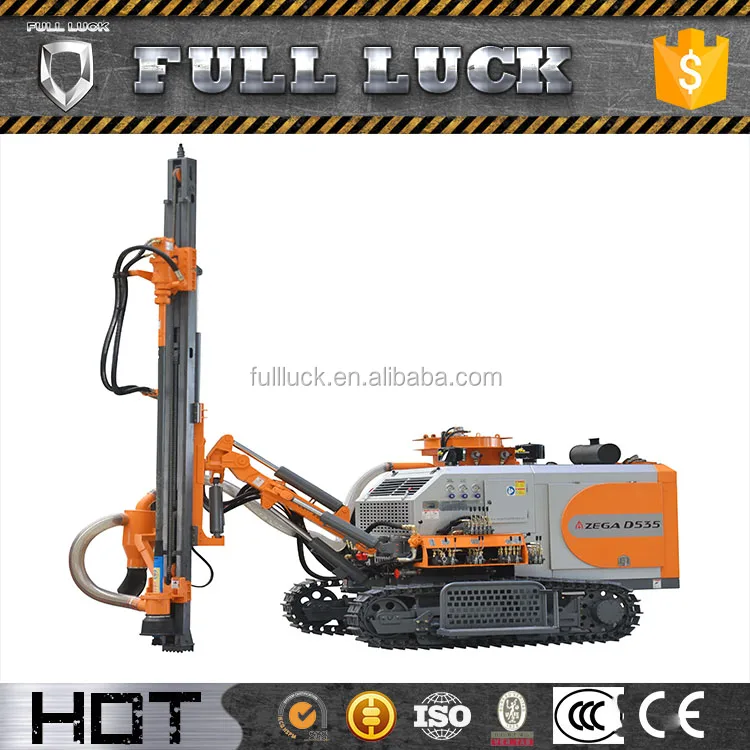

China brand new 20 m ground hole drilling machines

FOB Reference Price:Get Latest Price
$22,000.00 - $34,500.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
Drilling Machine
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Chile
Brand Name:
SEENWON
Voltage:
220V/380V
Power(W):
194KW
Dimension(L*W*H):
6050 mm*2560 mm*2720mm
Weight:
6850kg
Certification:
ISO
Warranty:
1 Year
product name:
China brand new 20 m ground hole drilling machines
Engine Manufacturer:
Cummins
Engine Rated Power:
142 kW
F.A.D:
10 m3/min
Rotation Speed:
0-110 rpm
Hole Diameter Range:
80-108 mm
Hole Depth:
20 m
Drill pipe type:
60 mm
Feed Type:
Cylinder / Chain
Feed Extension:
960 mm
Supply Ability
Supply Ability:
10000 Unit/Units per Month the supply of 5 TON LORRY as normal in holidays
Packaging & Delivery
Packaging Details
Standard package for China brand new 20 m ground hole drilling machines
Port
Shanghai, China

 China brand new 20 m ground hole drilling machines

Engine Rated Power142 kWEngine EmissionEuro II
F.A.D10 m3/minWorking Pressure14.5 Bar
Rotation Speed0-110 rpmRotary Torque1450 Nm
Hole Diameter RangeØ80-108 mmDTH Hammer3.5 inch
Hole Depth20 mNumber of Pipes6+1
Drill pipe type60 mm Pipe Length3,000 mm(collaring 2000 mm)
Feed TypeCylinder / ChainLength of Feed Beam5340 mm
Feed Extension960 mmFeed Travel Length3200 mm
Feed Speed0.75 m/sPull Up Force(Max.)25 kN
Max. Climbing Ability25°Feed Force(Max.)15 kN
Tramming Speedhigh 3.2 km/h, low 2 km/hTraction Force( Max.)65 kN
Ground Clearance540 mmFuel Tank Capacity170 L
Length6050 mmWidth2560 mm
Height2720mmWeight(options excluded)6850kg













Q: How can we trust your company?

A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and

VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.

Certificates including ISO9001 can also be provided.





Q: How about your warranty item?

A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our

experienced engineer can go abroad to your place for technical support.





Q: How about your product quality?

A: All our products are from the original manufacturers and the quality is 100% guaranteed.

Q:Can I be your agent in my country ?





Q:Can I be your agent in my country ?

A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
