800m Man Portable Core Sample Deep Water Well Drilling Drill Rig For Sale

FOB Reference Price:Get Latest Price
$5,000.00 - $60,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
SW400
Power(W):
110KW
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
China (Mainland)
Brand Name:
seenwon
Usage:
Coal
Voltage:
220V/380V
Dimension(L*W*H):
12340*3955*16850mm
Weight:
36t
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Product name:
800m man portable core sample deep water well drilling drill rig
Pressure:
15mpa
Driving form:
8*8motorcar chassis
Engine type:
D10.38-40
Rating of engine:
279kw
Maximum running speed:
70km/h
Maximum gradability:
50 %
Working dimension:
12340*3955*16850mm
Transportation dimension:
16000*2500*4230mm
Overall weight:
36t
Supply Ability
Supply Ability:
100000 Unit/Units per Year
Packaging & Delivery
Packaging Details
nude package for 800m man portable core sample deep water well drilling drill rig for sale sw400
Port
shanghai
Video Description
Product Description
Product name
800m man portable core sample deep water well drilling drill rig for sale sw400
Project
Unit
Parameter
feeding system
Maximum lifting force
(kN)
400
Maximum feeding force
(kN)
100
Drilling depth
(m)
800(φ89)
Max diameter of work floor
(mm)
φ500
Onboard engine
Type
CUMMINS 6BTAA5.9-C180
Rated power
(kW)
132
Top-mounted driving force head
Peak torque
(N•m)
13400
Speed of rotation
(r/min)
0~150
Drift diameter of principal shaft
(mm)
φ76
Floating stroke of the principal shaft
(mm)
70
Stroke
(mm)
12000
Fast lifting speed
(m/min)
27
Fast lowering speed
(m/min)
61
Maximum tilting angle
(°)
Winching rotary hook
Maximum hook load
(kN)
400
Maximum lifting or lowering speed
(m/min)
17
Tool winching
Maximum lifting force
(kN)
45
Maximum lifting or lowering speed
(m/min)
60
Back-off device
maximum shackle torque
(N•m)
45000
Retaining scope
(mm)
0~200
Mud pump
Maximum pump discharge
(L/min)
1200
Peak pressure
(MPa)
11
Foam pump
maximum pump discharge
(L/min)
50
Peak pressure
(Mpa)
10
Sludge pipe
Drift diameter
(mm)
φ76
Pressure
(Mpa)
15
Chassis
Driving form
8×8motorcar chassis
Engine type
D10.38-40
Rating of engine
(kW)
279
Maximum running speed
(km/h)
70
Maximum gradability
(%)
50
Working dimension
(mm)
12340×3955×16850
Transportation dimension
(mm)
16000×2500×4230
Overall weight
(t)
36
Advantages


1. It is equipped with 8×8 all-wheel-drive automotive chassis, meeting the national IV emission standards and equipped with off-road radial tire of transverse pattern with strong off-road performance.
2 .The full hydraulic top drive can achieve steeples speed variation, and the torque can adjust automatically to adapt the construction of different strata, energy conservation and high efficiency.





 3.The Max. Stroke of the top head drive is 12000mm, which can meet the requirement of 9600mm drill pipe.
4.the equipment of the floating axis can protect the thread of the pipe effectively and solve the jet power of the drilling rig to the top drive when on DTH hammer drilling.
5. The hydraulic system adopts load sensitive control system, which can reduce the heating value and more energy-saving.




6.The automatic pipe loader mechanism can not only increase the construction efficiency but also reduce the labour intensity.
7.The Drilling rig is equipped with mud pump foam pump and two air interfaces, users can adopt mud drilling or compressed air and DTH hammer drilling directly.
8. The major parts imported from international famous brand products with stable function and long lifetime. Such as decelerator, hydraulic motor and feeding & drawing ropes.

Our Company

Fulluck Group was founded in 1999. After 17-years of experience in the truck and construction equipment industry,  Shanghai Fulluck industrial co.,ltd  is Authorized dealers of Volvo truck and construction machinery, Renault truck, UD truck, Hino truck, Isuzu truck and Sinotruk. Famous local construction machines from manufacturers such as XGMA, Lonking are also our strategic partners. Fulluck also has our own manufacturing lines which enable us to provide customized trailers, containers and construction equipment according to end-user's requirements.


certificate
Packing & Delivery

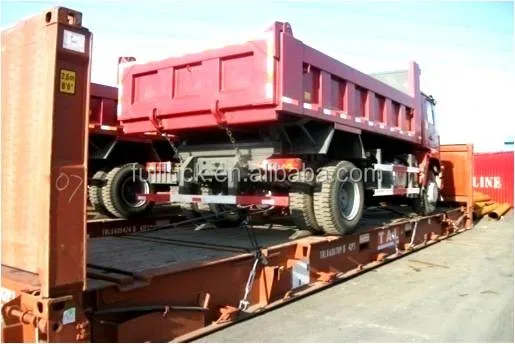

dump truck on flat rack container
